Product FeaturesFeatures

General typeGeneralpurpose

Small size, Easy to install SmallVolume, Easytoinstall

Application Application

Can be used in DC circuits of various electronic equipment and electronic measuring instruments

For DC side of electronic equipments and mesasuring instruments

Technical DataTechnical Data

Climatic Category:25/085/21

Rated voltageRatedVoltage: 80VDC

TestVoltage(1 min):

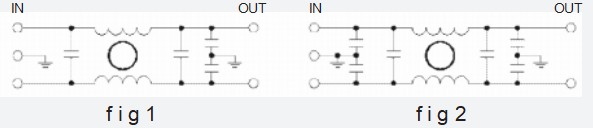

Typical circuit diagram

Specification sheet

ModelModel	Rated current Ratedcurrent(A)	Ground capacitor (nF)	leakage current (mA)	Circuit diagram Circuitdiagram	Shape codeShapecode	Termination form Terminal
CHF-1ZDX	1	22	—	fig. 1	A1	1/2
CHF-3ZDX	3	22	—	fig. 1	A1	1/2
CHF-6ZDX	6	22	—	fig. 1	A2	1/2
CHF-10ZDX	10	22	—	fig. 1	A2	1 / 2T
CHF-16ZDX	15	22	—	fig. 1	C1	1 / 2T
CHF-20ZDX	20	22	—	fig. 1	C1	2/3T
CHF-25ZDX	25	22	—	fig. 1	C1	2/3T
CHF-30ZDX	30	22	—	fig. 1	C2	2/3T
CHF-35ZDX	35	22		fig. 1	C2	2/3T
CHF-50ZDX	50	47	—	fig.2	C3	2/3T
CHF-80ZDX	80	47	—	fig.2	C4	3/T
CHF-100ZDX	100	100	—	fig.2	C4	3/T
CHF-120ZDX	120	100		fig.2	C5	3/T
CHF-150ZDX	150	220	—	fig.2	C5	3
CHF-180ZDX	180	220	—	fig.2	C6	3
CHF-200ZDX	200	470	—	fig.2	C6	3
CHF-250ZDX	250	470	—	fig.2	C6	3

Termination form code: 1-plug type, 2-lead type, 3-bolt type, T-terminal desktop type
