Product FeaturesFeatures

High performance typeHighperformance

Small size, Easy to install SmallVolume, Easytoinstall

Application Application

Can be used on the DC power supply side of various electronic equipment and electronic measuring instruments

For DC side of electronic equipments and mesasuring instruments

Technical DataTechnical Data

Climatic Category:25/085/21

Rated voltageRatedVoltage: 80VDC

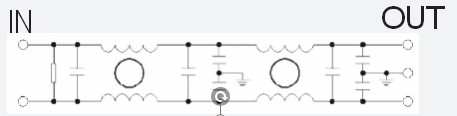

Typical circuit diagram

Specification sheet

ModelModel	Rated current Ratedcurrent(A)	Ground capacitor (nF)	leakage current (mA)	Circuit diagram Circuitdiagram	Shape codeShapecode	Termination form Terminal
CHF-10ZDH	10	22	—	fig. 1	C1	3
CHF-15ZDH	15	22	—	fig. 1	C1	3
CHF-20ZDH	20	22	—	fig 1	C1	3
CHF-25ZDH	25	22	—	fig. 1	C1	3
CHF-30ZDH	30	22	—	fig. 1	C2	3
CHF-35ZDH	35	100	—	fig. 1	C2	3
CHF-50ZDH	50	100	—	fig. 1	C3	3
CHF-60ZDH	60	100	—	fig 1	C3	3
CHF-80ZDH	80	100	—	fig. 1	C4	3
CHF-100ZDH	100	100	—	fig. 1	C4	3
