Product FeaturesFeatures
|
Application Application
Modular Power Supplies & AC or DC side in power supply of electronic equipment and mesasuring instruments |
Technical DataTechnical Data
|

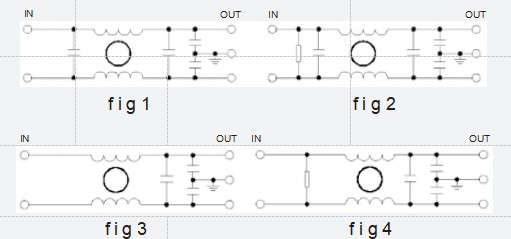

Typical circuit diagram
| ||||||
| ||||||
ModelModel | Rated current Rated | Ground capacitor (nF) | leakage current (mA) | Circuit diagram Circuit | Shape codeShape | Termination form Terminal |
CHF-1ZD | 1 | 2.2 | — | fig . 1 | D1 | PIN ↓ |
CHF-2ZD | 2 | 2.2 | — | fig . 1 | D2 | PIN ↓ |
CHF-3ZD | 3 | 2.2 | fig . 1 | D2 | PIN ↓ | |
CHF-6ZD | 6 | 3.3 | — | fig .2 | D2 | PIN ↓ |
CHF-10ZD | 10 | 4.7 | — | fig .2 | D3 | PIN ↓ |
CHF-16ZD | 16 | 4.7 | — | fig .2 | D4 | PIN ↓ |
CHF-3ZD | 3 | 3.3 | fig .3 | D2 | PIN ↓ | |
CHF-6ZD | 6 | 3.3 | — | fig .3 | D2 | PIN ↓ |
CHF-10ZD | 10 | 4.7 | — | fig .4 | D3 | PIN ↓ |
CHF-16ZD | 16 | 4.7 | — | fig .4 | D4 | PIN ↓ |
Product FeaturesFeatures
|
Application Application
Modular Power Supplies & AC or DC side in power supply of electronic equipment and mesasuring instruments |
Technical DataTechnical Data
|
Typical circuit diagram
| ||||||
| ||||||
ModelModel | Rated current Rated | Ground capacitor (nF) | leakage current (mA) | Circuit diagram Circuit | Shape codeShape | Termination form Terminal |
CHF-1ZD | 1 | 2.2 | — | fig . 1 | D1 | PIN ↓ |
CHF-2ZD | 2 | 2.2 | — | fig . 1 | D2 | PIN ↓ |
CHF-3ZD | 3 | 2.2 | fig . 1 | D2 | PIN ↓ | |
CHF-6ZD | 6 | 3.3 | — | fig .2 | D2 | PIN ↓ |
CHF-10ZD | 10 | 4.7 | — | fig .2 | D3 | PIN ↓ |
CHF-16ZD | 16 | 4.7 | — | fig .2 | D4 | PIN ↓ |
CHF-3ZD | 3 | 3.3 | fig .3 | D2 | PIN ↓ | |
CHF-6ZD | 6 | 3.3 | — | fig .3 | D2 | PIN ↓ |
CHF-10ZD | 10 | 4.7 | — | fig .4 | D3 | PIN ↓ |
CHF-16ZD | 16 | 4.7 | — | fig .4 | D4 | PIN ↓ |
PCB mounting PCB mounting
