Product FeaturesFeatures

General Generalpurpose

Easy to installtoinstall

Application Application

Used to suppress electromagnetic interference transmitted along power lines

For the suppression of electromagnetic interference along the power line transmission

Technical DataTechnical Data

Climatic Category:25/085/21

Rated voltageRatedVoltage: 250/440Vac

Operating frequency:50/60Hz

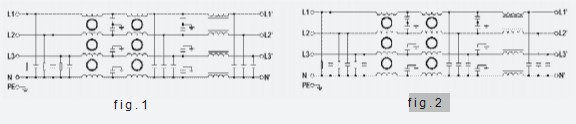

Typical circuit diagram

Specification sheet

ModelModel	Rated current Ratedcurrent(A)	shell code shellcode	Circuit diagram Circuitdiagram	Ground capacitor (nF)	Discharge resistor discharge resistor	Terminal form Terminal	Wiring protective cover wiring protectivecasing
CHF-50EUK	50	5B	fig. 1	47	220KΩ	3	CH-PF1
CHF-60EUK	60	5B	fig. 1	47	220KΩ	3	CH-PF1
CHF-80EUK	80	6B	fig. 1	47	220KΩ	3	CH-PF1
CHF-100EUK	100	6B	fig. 1	47	220KΩ	3	CH-PF1
CHF-120EUK	120	6B	fig. 1	47	220KΩ	3	CH-PF1
CHF-150EUK	150	7B	fig. 1	68	220KΩ	3	CH-PF1
CHF-200EUK	200	7B	fig. 1	68	220KΩ	3	CH-PF1
CHF-300EUK	300	8B	fig.2	680	330KΩ	M	—
CHF-450EUK	450	9B	fig.2	680	330KΩ	M	—
CHF-600EU	600	9B	fig.2	680	330KΩ	M

Termination form code: 3-bolt type, T-terminal table type
