Product FeaturesFeatures

General typeGeneralpurpose

Easy to installtoinstall

Application Application

Can be used in AC power supply systems for various electronic equipment and electronic measuring instruments

For AC power supply of electronic equipment and measuring instruments

Technical DataTechnical Data

Climatic Category:25/085/21

Rated voltageRatedVoltage: 250Vac

Operating frequency: 50/60Hz

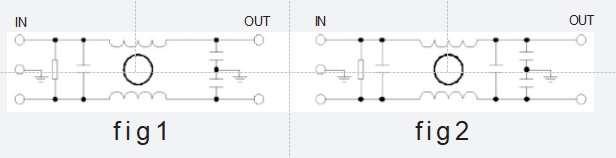

Typical circuit diagram

Specification sheet

ModelModel	Rated current Ratedcurrent(A)	Ground capacitor (nF)	leakage current (mA)	Circuit diagram Circuitdiagram	Shape codeShapecode	Termination form Terminal
CHF-1ESX	1	2.2	≤ 1	fig. 1	A1	1/2
CHF-3ESX	3	2.2	≤ 1	fig. 1	A1	1/2
CHF-6ESX	6	3.3	≤ 1	fig. 1	A2	1/2
CHF-10ESX	10	3.3	≤ 1	fig. 1	A2	1/2/T
CHF-16ESX	16	4.7	≤ 1	fig.2	C1	1/2/T
CHF-20ESX	20	4.7	≤ 1	fig.2	C1	2/3/T
CHF-25ESX	25	4.7	≤ 1	fig.2	C1	2/3/T
CHF-30ESX	30	4.7	≤ 1	fig.2	C2	2/3/T
CHF-35ESX	35	4.7	≤ 1	fig.2	C2	2/3/T
CHF-50ESX	50	4.7	≤ 1	fig.2	C3	2/3/T
CHF-80ESX	80	6.8	≤ 1.5	fig.2	C4	3/T
CHF-100ESX	100	6.8	≤ 1.5	fig.2	C4	3/T
CHF-120ESX	120	6.8	≤ 1.5	fig.2	C5	3/T
CHF-150ESX	150	6.8	≤ 1.5	fig.2	C5	3

Termination form code: 1-plug type, 2-lead type, 3-bolt type, T-terminal desktop type
