ESH series

ModelModel

Rated current    Ratedcurrent(A)

Ground capacitor

(nF)

leakage current

(mA)

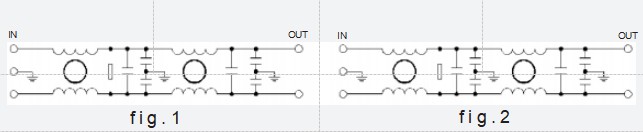

Circuit diagram      Circuitdiagram

Shape codeShapecode

Termination form

Terminal

CHF-3ESH

3

2.2

≤ 1

fig . 1

B1

1/2

CHF-6ESH

6

2.2

≤ 1

fig . 1

B2

1/2

CHF-10ESH

10

2.2

≤ 1

fig . 1

B2

1/2/T

CHF-16ESH

15

3.3

≤ 1.5

fig .2

C10

1/2/T

CHF-20ESH

20

3.3

≤ 1.5

fig .2

C10

2/3/T

CHF-25ESH

25

3.3

≤ 1.5

fig .2

C10

2/3/T

CHF-30ESH

30

3.3

≤ 1.5

fig .2

C12

2/3/T

CHF-35ESH

35

3.3

≤ 1.5

fig .2

C12

2/3/T

CHF-50ESH

50

3.3

≤ 1.5

fig .2

C13

2/ 3/T

CHF-80ESH

80

10

≤ 5

fig .2

C14

3/T

CHF-100ESH

100

10

≤ 5

fig .2

C14

3/T

CHF-120ESH

120

22

≤ 10

fig .2

C15

3/T

CHF-150ESH

150

22

≤ 10

fig .2

C15

3
