Product FeaturesFeatures
|
Application Application
Applicable to a variety of strong interference situations |
Technical DataTechnical Data
|

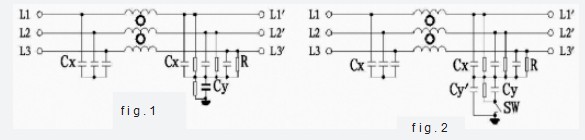

Typical circuit diagram |
|
Specification sheet |
ModelModel | Rated current Rated | Shell code shell code | Discharge resistor discharge resistor | Ground capacitor (nF) | Termination form Terminal | Circuit diagram Circuit | |
CHF-16EA | 16 | LC 10 | 560K/1M | 470nF | Terminal type | fig .2 | |
CHF-20EA | 20 | LC 10 | 560K/1M | 470nF | Terminal type | fig .2 | |
CHF-25EA | 25 | LC 10 | 560K/1M | 470nF | Terminal type | fig .2 | |
CHF-30EA | 30 | LC 10 | 560K/1M | 470nF | Terminal type | fig .2 | |
CHF-35EA | 35 | LC 20 | 560K/1M | 680nF | Terminal type | fig . 1 | |
CHF-50EA | 50 | LC 20 | 560K/1M | 680nF | Terminal type | fig . 1 | |
CHF-60EA | 60 | LC 30 | 560K/1M | 680nF | Terminal type | fig . 1 | |
CHF-75EA | 75 | LC 30 | 560K/1M | 1 u | Terminal type | fig . 1 | |
CHF-100EA | 100 | LC 30 | 560K/1M | 1 u | Terminal type | fig . 1 | |
Note: When equipped with a variable capacitance switch, the leakage current is measured when the switch is turned on. When two phases are open circuit, the leakage current can increase by 6-8 times
