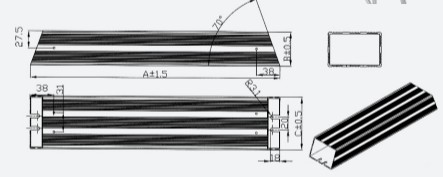

The size and sectional drawing
|
Specification sheet |
Model, power | Appearance size (mm) | Wiring (mm 2 ) | Lead length(mm) | Remark | ||
A | B | C | ||||
RXLG-200 | 165 | 30 | 60 | 2.5 | 500 |
resistance, Lead length and wiring can be customized according to customer Customers require customization. |
RXLG-250 | 165 | 30 | 60 | 2.5 | 500 | |
RXLG-390 | 265 | 30 | 60 | 2.5 | 500 | |
RXLG-500 | 335 | 45 | 70 | 2.5 | 500 | |
RXLG-800 | 380 | 55 | 85 | 2.5 | 500 | |
RXLG-1000 | 400 | 55 | 85 | 2.5 | 500 | |
RXLG-1500 | 485 | 55 | 85 | 4 | 500 | |
RXLG-2000 | 550 | 55 | 85 | 4 | 500 | |
RXLG-3000 | 600 | 55 | 85 | 4 | 500 | |
RXLG-4500 | 600 | 107 | 50 | 4 | 500 | |
RXLG-5500 | 600 | 107 | 50 | 4 | 500 | |
RXLG-6000 | 600 | 107 | 50 | 4 | 500 | |
Note: Specifications and parameters are subject to change without further notice. Please refer to our website for the shape size parameters and other parameters corresponding to the shape code. Product series instructions or consult the sales department.
